AC1200 Enterprise Mesh Wi-Fi System
  • 1200Mbps 11AC Wave 2 Wi-Fi
  • True Mesh technology
  • Seamless Roaming
  • APP Management
  • Supports wall mount/ceiling mount/pole mount/desk mount

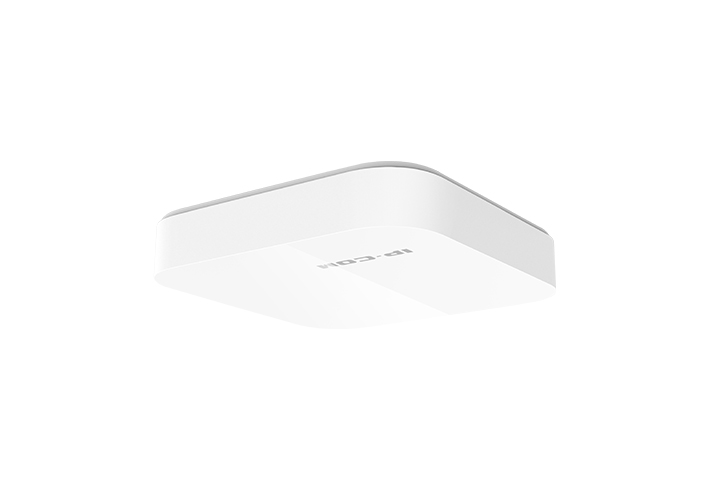

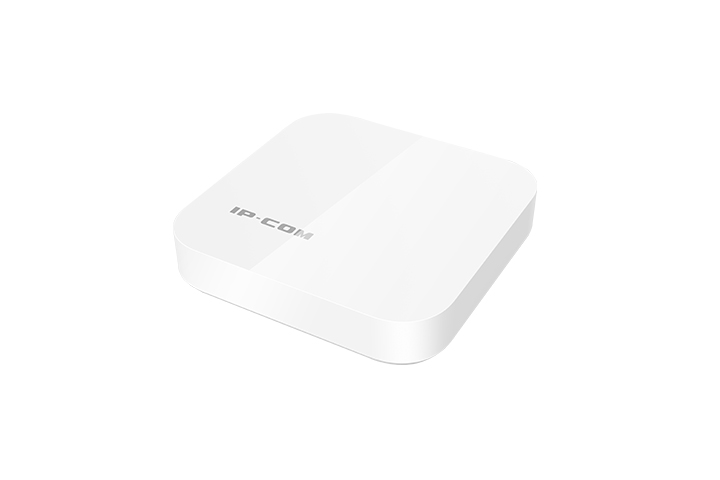

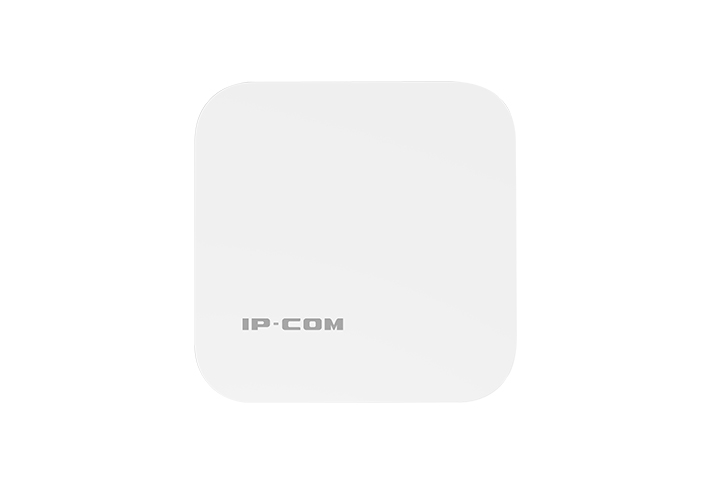

EP9 is Mesh Wi-Fi system extender from IP-COM specially designed for office, restaurant, hotel and other scenarios. With advanced true Mesh technology and innovative built-in omnidirectional antennas design, enterprise users can adjust the quantities of EP9 according to the application area and combined with EW9 to form a distributed Mesh network without dead zone. EP9 provides a variety of mounting methods by mounting brackets and accessories, it supports wall mount/ceiling mount/pole mount/desk mount, and can be applicated in a variety of scenarios.

True Mesh

IP-COM EW9+EP9 products apply True Mesh technology, the devices can fulfill plug and play, self-discovery, self-configutation and self-networking. Free your wire, free your hands.

1200M 11AC Wave 2 Wi-Fi

Using 802.11 ac Wave 2 MU (MIMO) technology, faster your surfing experence and strongly improve the capacity.

Omni Antenna Design

IP-COM Mesh wifi products use innovative signal design, built-in antennas combine with beam forming technology, focus signal on the user's location, greatly improved the quality of the wireless coverage.

Seamless Roaming

Mesh network supports seamless roaming, when wireless users roaming among multiple nodes, the system can maintain the user`s IP address information and keep the certification status, user roaming from node A to node B rapidly, roaming speed  < 50 ms, the users can feeling nothing in the surfing experience .

APP Management

IP-COM mesh products support APP cloud management, the management and maintenance of devices can be realized through mobile APP. By using ip-com cloud account login, the APP can be managed and maintained remotely.

Smart Bandwidth Management

With the intelligent bandwidth management technology (QoS), the device will adjust the bandwidth intelligently according to the utilization rate of the bandwidth and the network application.

Captive Portal

Built-in multiple authentication management systems, authentication based on Portal, can completely solve the problem of traditional wireless password sharing by WiFi sharing software, network being rubbed, and internal network data being stolen.
One key authentication:authentication based on Portal, customizable Portal push page, users don`t need account and password to access to the Internet.
WEB Account password authentication:based on Portal authentication, the Portal push page can be customized, and users need to verify account and password to access to the Internet.
SMS authentication:based on Portal authentication, the Portal push page can be customized. Users need to enter their mobile phone number and pass the authentication before they can access the Internet.

Diversity Founction Mount Bracket

Combined with easy mounting bracket and fittings, four installation modes can be realized: wall mount/ceiling mount/pole mount/desk mount.

  • 1200Mbps 11AC Wave 2 Wi-Fi
  • True Mesh technology
  • Seamless Roaming
  • APP Management
  • Supports wall mount/ceiling mount/pole mount/desk mount
EP9 is Mesh Wi-Fi system extender from IP-COM specially designed for office, restaurant, hotel and other scenarios. With advanced true Mesh technology and innovative built-in omnidirectional antennas design, enterprise users can adjust the quantities of EP9 according to the application area and combined with EW9 to form a distributed Mesh network without dead zone. EP9 provides a variety of mounting methods by mounting brackets and accessories, it supports wall mount/ceiling mount/pole mount/desk mount, and can be applicated in a variety of scenarios.
Hardware Specification
FrequencyDua-Band:2.4G+5G
Wireless Rate300+867Mbps
11AC Wave 2Support
BeamformingSupport
Networking TechnologyTrue Mesh
Wireless Power2.4G:19dBm
5G:19dBm
Antenna4*4dBi, Horizontal omnidirectional antenna

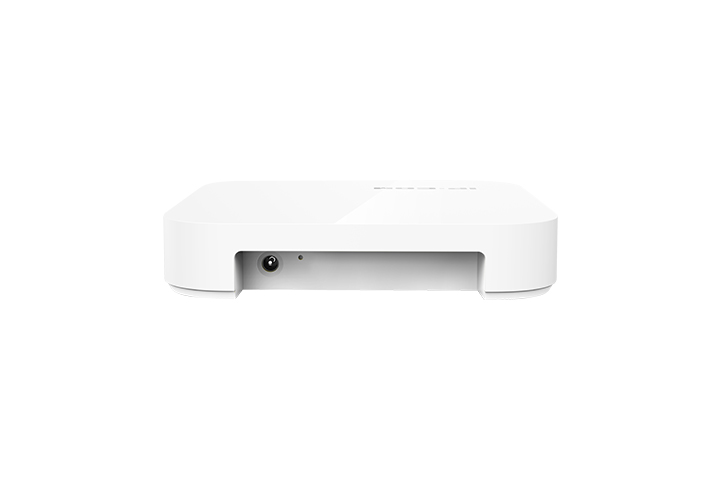

Interface1*Power Port, 1*Reset button
Software Specification
QoSSupport
Seamless RoamingSupport
Installation and Deployment
Mountingwall mount/ceiling mount/pole mount/desk mount
APP Installation and ConfigurationSupport
Route Mode and Bridge ModeSupport
Mesh nodes in one Mesh SystemTypical:3
Max:9
Management and Maitainance
APP ManagementSupport
Authentication Access
Local CertifiicationSupport
Other
DimensionsProduct:170*170*36mm
Packing:260*175*55mm
Packing ListBracketx1, Boltx4、Expansion sleevex4, Expansion scewx4, Ribbonx2
Packing Quantities20
Power DimensionsExternal switching power supply 12V/1A
CertificationFCC\CE\RoHs

Mesh Network Topolofy for Small Project
It is designed for office, restaurant, hotel and other SMB segment.
●  The Mesh device works in router mode, and the host node of Mesh ACTS as the network core router for data forwarding
●  Two Mesh satellites nodes and the host build a mesh system
●  APP Local and remote management and maintenance. The engineer can check the real-time status of all Mesh networks  that they have done through the cloud platform

Mesh Network Topolofy for Middle Project
It is designed for office, restaurant, hotel and other enterprise project.
●  Three Mesh products are placed in one area to form an independent mesh network system . Mesh devices of different floors and areas are connected to the switch through the network.
●  All the mesh nodes work as AP mode at the same time. All nodes can be managed locally and remotely by the APP.
●  The engineer can check the operation status of all deployed Mesh networks through the cloud platform.
