Pro-6-IW

AX3000 Wi-Fi 6 Wireless In-Wall Access Point

Pro-6-IW Pro-6-IW Pro-6-IW Pro-6-IW

Pro-6-IW

AX3000 Wi-Fi 6 Wireless In-Wall Access Point

  • Support k/v/r fast roaming
  • Support IPTV penetration
  • Traffic control function
  • Double-sided tape installation
  • 3000 Mbps Wireless rate

Pro-6-IW    Overview

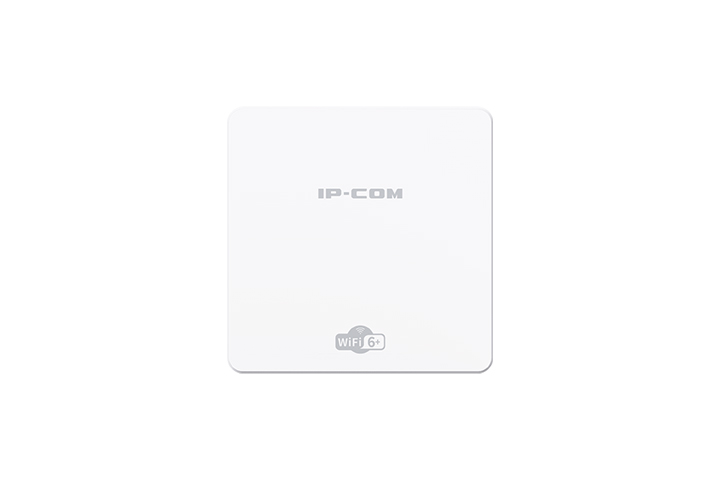

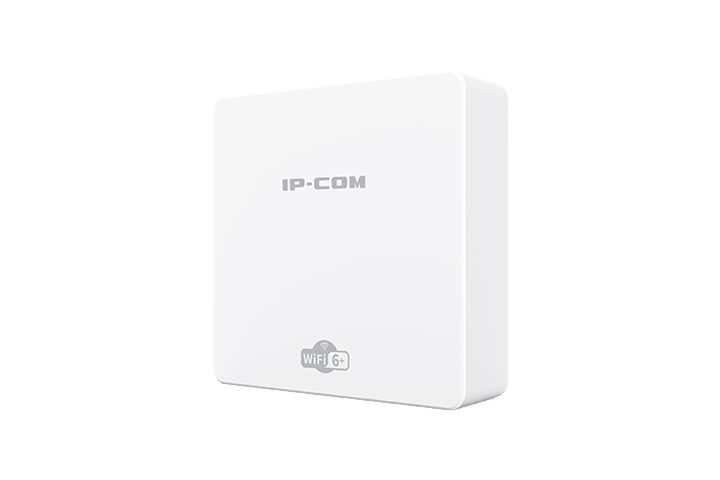

Pro-6-IW is a Gigabit dual-band panel AP based on the new Wi-Fi 6 standard. It realizes a bandwidth of 160 MHz and a wireless rate of 3000 Mbps, which is twice that of ordinary Wi-Fi6 products. The fast roaming feature enables the AP to automatically select a better quality wireless network. With just one Ethernet cable, you can enjoy both wireless and wired networks. Pro-6-IW is a wise choice for you to deploy high-performance WLAN network for the double-sided tape installation method it added.

Wireless speed up to 3000Mbps, 160MHz channel bandwidth
Smooth experience for 8K movies

Pro-6-IW adopts the new generation WiFi6 technology, with160MHz channel bandwidth, dual-band concurrent wireless rate up to 3000Mbps. Pro-6-IW is designed to meet every network need in downloading, VR games, cloud gaming, etc. It can deliver simultaneous high-speed internet access to 80 devices.

New "suspended" Antenna Design
Better signal,wider coverage

Two omni-directional independent antennas, equipped with a 4-way FEM signal amplifier. Compared with other ordinary APs, wireless signal transmission and reception capacity is increased by 2 times, which can easily cover 250㎡ villa/large suite. Unique antenna design effectively reduces co-channel interference and makes the WiFi signal more stable.

802.11k/v/r seamless roaming, uninterrupted switching
Strong Wifi on the go

With a unified SSID for the whole house, the internet device automatically connects to the AP node with the best signal, and latency is low to 50ms. Wherever you go, the wireless speed is always smooth and stable.

Two-side tap design,No tools needed,No damage to walls
Super easy installation

The Pro-6-IW can be installed with a double-sided tap on the back, plug in the cable and the AP will be attached to the original network port panel. The location is flexible and it can be installed in a bedroom, study or balcony.

Standard 86 panel design to fit any house
Wireless coverage in four easy steps

Standard 86 type panel design with high scene adaptation. For installation, simply remove the original AP and replace it with Pro-6-IW, no rewiring is required and no damage is done to the original wall surface.

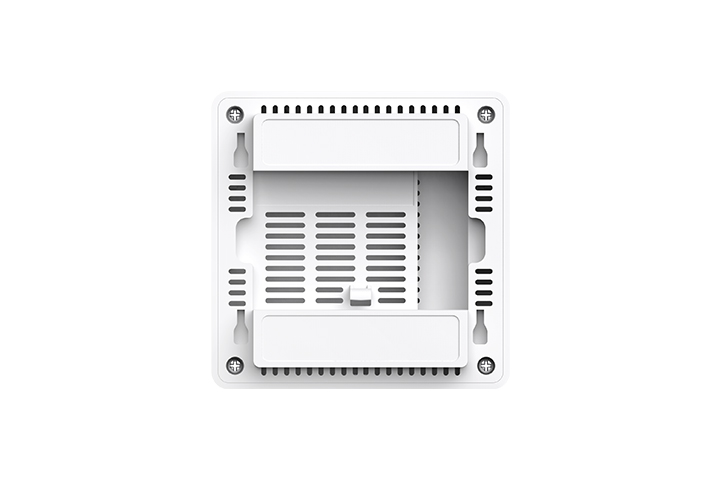

111 small louvre cooling holes + high efficiency circulation duct
Better cooling performance, faster internet speed

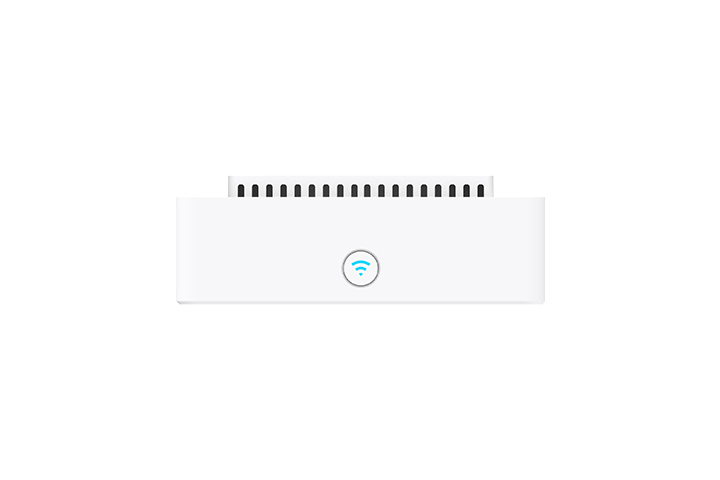

Unlike traditional in-wall AP designs, the shell of Pro-6-IW is higher than wall by 3 cm, increasing the contact area with air and speeding up heat dissipation without affecting the aesthetics of the space. At the same time, it is equipped with 111 cooling holes which increase the cooling efficiency by 30%.

Separated IPTV and Internet ports
Enjoy both TV and Internet

Pro-6-IW provides a separated IPTV port, which is connected to STB box, avoiding the trouble of laying network cables.

Supports centralised management of Cloud Platform/APP
Efficient and intelligent, easily reduce O&M costs

Supports unified deployment, configuration and management of devices.
You can use the IP-COM Cloud Platform and APP to manage your operations and maintenance from anywhere.
