G1050F

G1050F

48GE+2SFP Unmanaged Switch
  • Comply with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, and IEEE 802.3x standards.
  • Provide 48 10/100/1000 Mbps Base-T Ethernet ports and support auto MDI/MDIX.
  • Provide 2 independent 1000 Mbps Base-X SFP ports and support 20 km long-distance networking.
  • Support 16K MAC address table and MAC address auto-learning.
  • Support full duplex IEEE 802.3x flow control and half duplex back pressure flow control.
  • Support unblocked wire speed forwarding for all ports.
  • Support 12Mb large buffer queue.
  • Integrated professional lightning protection circuit offers 6 kV lightning protection for the built-in power supply and all Ethernet ports.
  • One-key VLAN function helps isolate broadcast storms effectively.
  • Feature a 19-inch/1U standard rack-mount shell design.

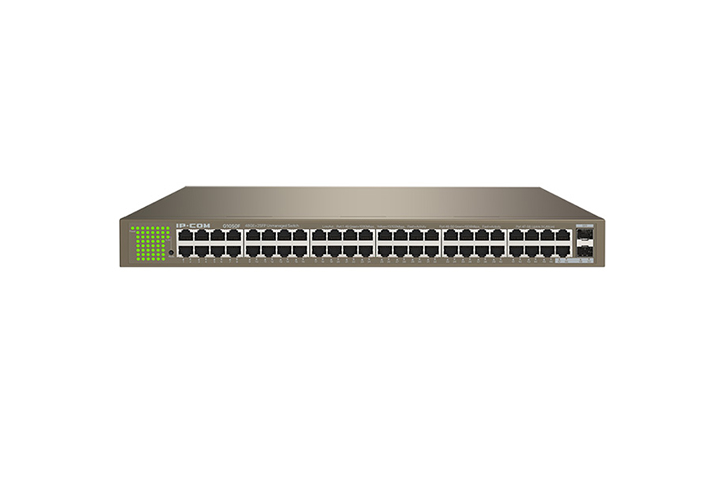

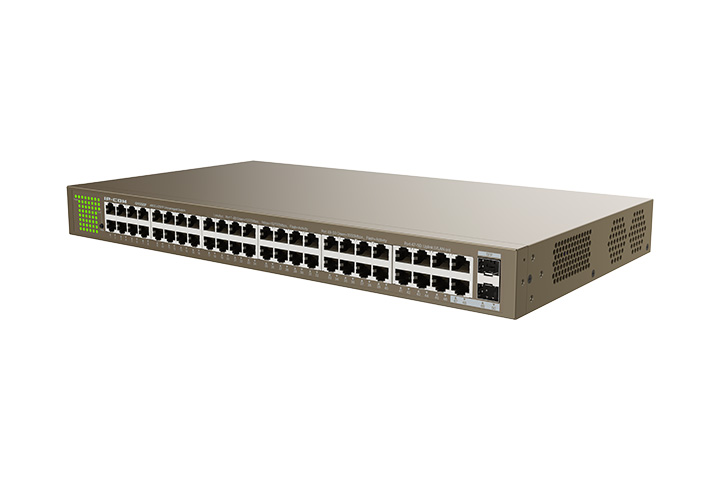

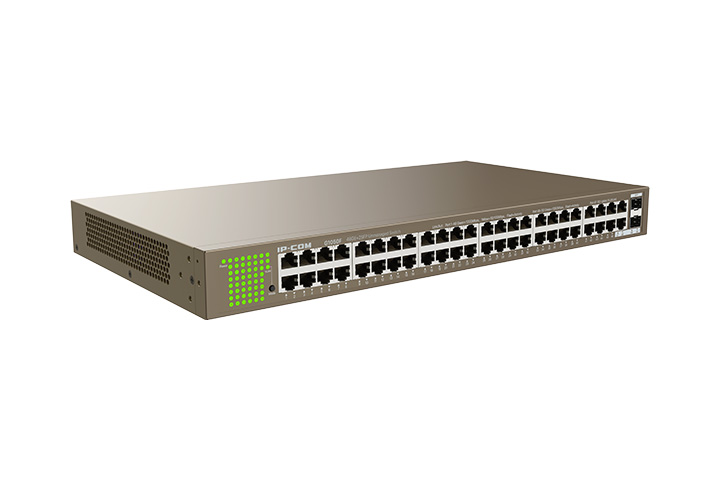

Developed by IP-COM, G1050F is a Gigabit unmanaged Ethernet switch designed for establishing wired networks of high density and high speed in such scenarios as enterprises, parks, schools, and internet cafes, providing a simple, easy, cost-effective, and rapid internet access solution for video surveillance and SMBs' networking. With 48 10/100/1000 Mbps RJ45 ports, and 2 independent Gigabit SFP slots that can be paired with IP-COM's SFP modules, this switch can be used to deploy a long-distance network up to 20 km. Its full-duplex transmission rate can reach 2000 Mbps, ensuring the timely transmission of large files and smoothness of videos. Its one-key VLAN function can isolate broadcast storms. Its integrated professional lightning protection circuit offers 6 kV lightning protection for the built-in power supply and all Ethernet ports, ensuring the stability and reliability of the switch. The switch supports desktop mounting, rack mounting and wall mounting, and features a 1U 19-inch standard rack-mount shell design and plug & play function. With these advantages, it is an ideal choice for deploying a cost-effective and high-speed network.

High-density Gigabit Ports

The switch provides 48 10/100/1000 Mbps auto-negotiation RJ45 ports, and 2 independent 1000 Mbps SFP ports. The full-duplex transmission rate of the switch can reach 2000 Mbps, and all ports feature wire speed forwarding, ensuring high performance for processing applications that require high bandwidth.

12Mb Large Buffer

With 12 Mb large buffer, the switch can meet the needs of such network applications with burst traffic as search engine, IPTV, and P2P downloads, ensuring no packet loss, timely transmission of large files, and smoothness of videos.

6KV Lightning Protection

This switch provides 6KV lightning protection for both Ethernet ports and the power supply, and supports over-temperature, over-voltage and surge current protection.

One-key VLAN

Under the VLAN mode, ports 1 to 46 cannot communicate with each other, but can communicate with uplink ports 47 to 50, isolating broadcast storms and enhancing network security.

Ease of Use

The switch features a 1U 19-inch standard rack-mount shell design and can be easily installed on a 19-inch rack using the included L-shaped brackets. With plug & play function, it needs no professional settings and can be used for networking directly, greatly reducing the maintenance cost.
  • Comply with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, and IEEE 802.3x standards.
  • Provide 48 10/100/1000 Mbps Base-T Ethernet ports and support auto MDI/MDIX.
  • Provide 2 independent 1000 Mbps Base-X SFP ports and support 20 km long-distance networking.
  • Support 16K MAC address table and MAC address auto-learning.
  • Support full duplex IEEE 802.3x flow control and half duplex back pressure flow control.
  • Support unblocked wire speed forwarding for all ports.
  • Support 12Mb large buffer queue.
  • Integrated professional lightning protection circuit offers 6 kV lightning protection for the built-in power supply and all Ethernet ports.
  • One-key VLAN function helps isolate broadcast storms effectively.
  • Feature a 19-inch/1U standard rack-mount shell design.
Product model G1050F
Hardware features
Network standards IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z
LED indicators One Link/Act LED indicator for each port(green:1000M,yellow:100M)
One Power LED indicator for each device
One VLAN LED indicator for each device
Ports 48 10/100/1000Base-T Ethernet ports
2 independent 1000 Mbps SFP ports
Transmission medium Ethernet: CAT3 UTP or better
Fast Ethernet: CAT5 UTP or better
Gigabit Ethernet: CAT5e UTP or better
1000Base-SX: MMF
1000Base-LX: MMF or SMF
Dimensions (L x W x H) 440 mm x 240 mm x 44 mm
Product material Steel shell
Fan Fanless
Protection Port lightning protection: 6 kV
Power supply lightning protection: 6 kV
Electrostatic protection:
- Air discharge: ±8 kV
- Contact discharge: ±6 kV
Forwarding mode Store-and-forward
Switching capacity 100 Gbps
Packet forwarding rate 10 Mbps: 14880 pps
100 Mbps: 148800 pps
1000 Mbps: 1488000 pps
Buffer 12 Mb
MAC address table 16 K
Jumbo frame 12 K
Power supply Input: 100 - 240V AC 50/60Hz
Output: 12V 4A
Whole switch consumption Whole switch consumption: <48 W
Mounting methods Support desktop mounting
Support wall mounting
Support rack mounting
Environment Operating temperature: 0°C - 45°C
Storage temperature: -40°C - 70°C
Operating humidity: (10% - 90%)RH, non-condensing
Storage humidity: (5% - 90%)RH, non-condensing
Certificates CCC, FCC, CE, RoHS
Software features
Protocol CDMA/CD
MAC address learning Auto learning and auto updating
Function One-key VLAN (In this mode, ports 1 to 46 cannot communicate with each other, but can communicate with ports 47 to 50.)
